OHV DISTRIBUTOR

Let's have a look at the distributor on the Viva engine. The type that you will come across is the Delco D202 type. There are alternatives but more on that later.
The Delco type of distributor was used throughout the Viva range, from first HAs to last HCs. It is of the points type and is driven from a slot in the oil pump, which it drops into.

This distributor is generally not well favoured for a number of reasons:
  • The distributor shaft itself is prone to wearing very quickly
  • The points have a habit of moving about, reducing surface contact area
  • The flat section of the shaft that slots into the oil pump drive gear has been known to snap off
  • There are other problems but these are less significant

Note: This distributor is generally regarded as a bit of a poor relation to the one found in contemporary Opel Kadetts, despite the fact that the Viva engine took its cues from the Opel unit. The Opel distributor has a much greater points surface area and better location.

DISTRIBUTOR SHAFT WEAR

This occurs because the types of bearing metal used (shaft and sleeve) are very similar, rather than one metal being, say brass. However I think there may be another reason behind this: On the baseplate of the dizzy there is a plastic bracket with a ring of sponge on it. This lubricates the cam which moves the points. However the plastic bracket obscures the word "OIL" on the baseplate. When the car is serviced, there is a hole in the baseplate of the distributor that you should squirt a bit of engine oil down. This helps lubricate the bearing in the dizzy and helps to stop the bob weights from seizing up. Obviously, a lack of oil would accelerate the wearing process and there is no other obvious way of oil getting in to the dizzy.

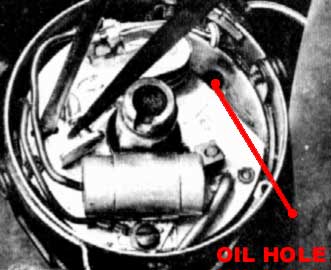

Distributor oil hole image Once there is lateral play in the shaft, all sorts of problems can occur regarding timing, chewing of the centre electrode in the cap, arcing problems and rough running. The only real answer is to replace the distributor with a better or new one. It's really easy to strip down a Delco unit so do so to give it a clean and oil before use! I fitted a brand new distributor once and it wore out in only 3000 miles due to wear in the shaft! This was because I forgot to drop oil down the hole in the baseplate at the fitting stage. Doh.


POINTS MOVING ABOUT

This is a fairly common problem but is easy to sort out. What happens is the arm of the points slowly rises up the pivot shaft, resulting in it not making good contact with the part that is screwed to the baseplate. Result? very rough running at worst or sometimes rough only at high revs. And embarrasing when you're out shopping or whatever.
This is easy to sort out. Sometimes, the pivot pin that the arm sits on gets bent so you just need to bend it back into the right shape. The other reason is rubbish points. I have bought several sets in the past of a "reputable" brand to find they all did the same thing. When changing to Delco points, problem stops!


DRIVE SNAPPING OFF

This has never happened to me but is quite widely heard of. The small flat section that slots into the oil pump drops off. Either the dizzy won't turn round at all or it gets caught and spins very erratically. This is particularly a problem with the "offset drive" distributors. Up to about '77 ish, all Vivas had the offset drive type of set up. Later cars, including the Chevette had centre drive types, greatly reducing this problem as the forces on the "flat bit" were more even. To convert to the centre drive set up, you will need a centre drive oil pump too. And then take the engine out, etc.


OTHER PROBLEMS

There are a few other minor problems too which can cause great aggravation. The first is with the little wire that joins the baseplate to the outside of the distributor. This can snap inside, causing intermittent running, especially with the ignition advanced. A nightmare. Just replace the wire. In other cases, the wire from the points to the coil can break too. This is also a point of great "entertainment".


GENERAL STUFF

Don't forget that although the distributors are interchangable, watch out with the advance curves as they may be different to that on your existing car. If in doubt, change the vacuum advance and mechanical advance assemblies over to the new distributor. It's worth checking the Haynes manual too although this really isn't that useful. Vivas had a dwell angle of 35-37 degrees up to engine number 1639738. After this, the angle changed to 49 - 51 degrees.


ALTERNATIVES

There are a few ways of improving the ignition so we'll start with the most common

ELECTRONIC CONVERSION - This unit connects up to your ignition system and reduces current through the points. I have tried one of these myself for about 45000 miles and it proved to be very effective. Couple this with a good reliable distributor and it will improve cold starting, idling and fuel economy by creating bigger sparks. The points still wear out though - the spring gets tired and scatter occurs at high revs. Also, because there's so little current passing through the points, they sometimes get oil on them and this can cause rough running. Solution? give them a clean.

BOSCH DISTRIBUTOR - This is a much more reliable distributor than the Delco type. The points are also much better located so expect better running all round. These are only available for those cars with centre drive oil pumps though so check first. This distributor looks very similar to those used on Mantas and various Fords so it may be possible to fit the electronic innards from one of these into the Bosch points distributor. I've not seen this done and cannot confirm it but it may be possible!

LUMENITION / OTHER AFTERMARKET CONVERSIONS - There are other conversions such as these available too and they work very well. Haven't actually used one of these types though.


RACING

Bit of a tricky one as it depends on what the class of racing allows. Electronic ignition has to be the best, just to keep the engine in tune rather than have those points move all the time. In addition to this, a high voltage coil would help, along with heavy duty ballast resistor (if needed) and some thick racing plug leads. Actually I would recommend 8mm leads for road use even if the engine is totally standard as this helps with economy and starting. Don't forget to separate the plug leads and keep them from being too parallel with each other. Racing / notched plugs should of course be considered.
